Product Details
＋
Road Reimagined

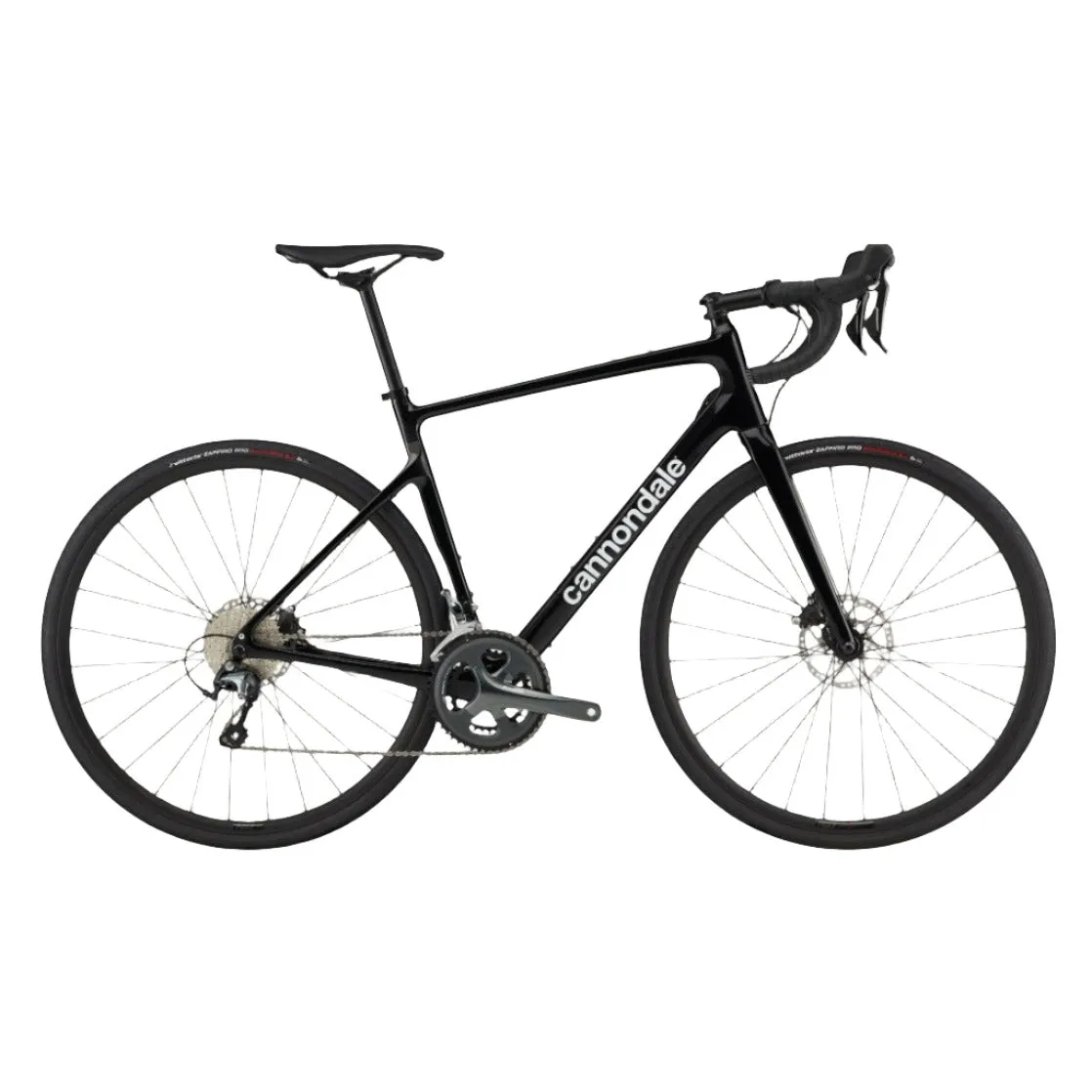

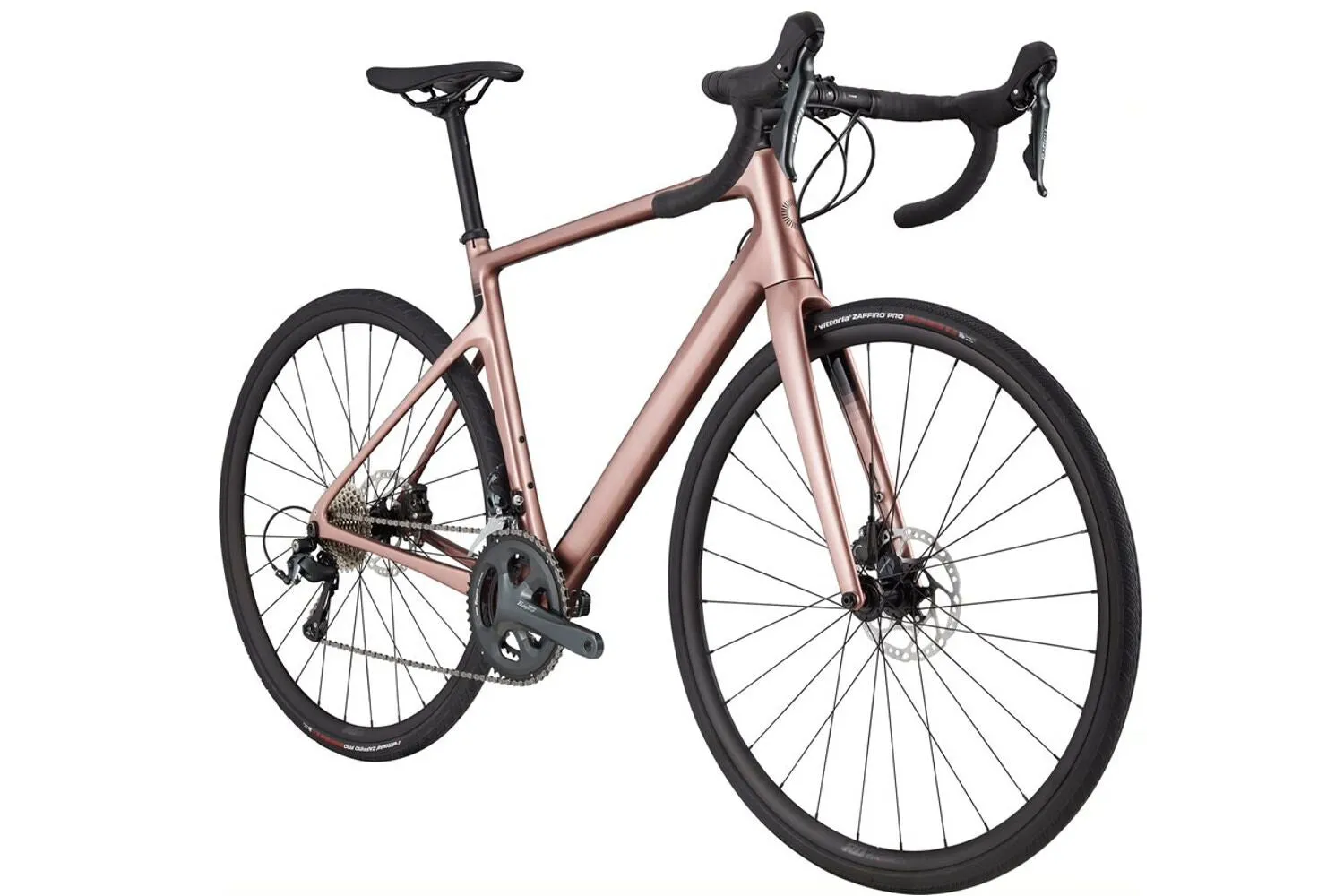

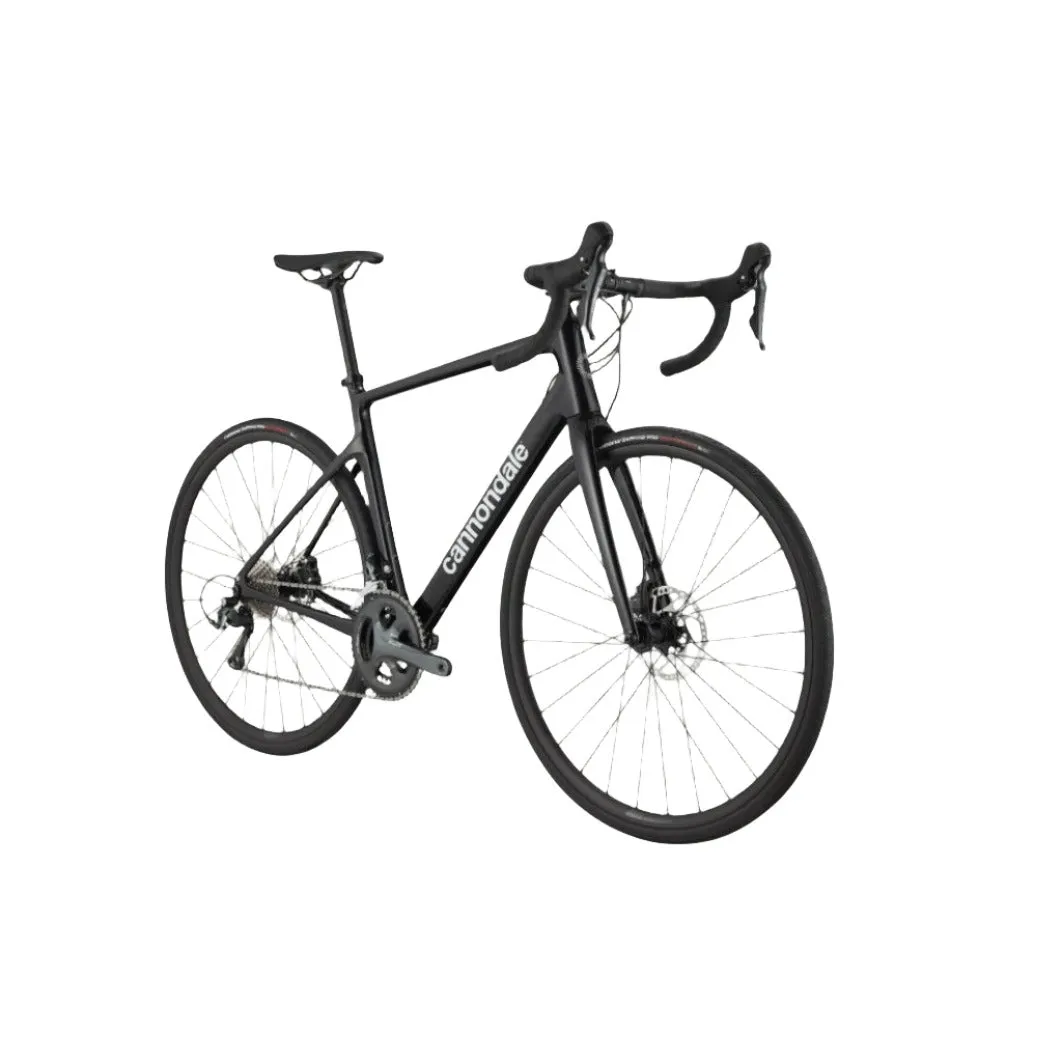

Roll smooth, roll fast, roll confident. Wherever the road takes you, roll with the Cannondale Synapse Carbon 4 Tiagra Disc Road Bike – Cannondale's most comfortable, all-around, up-for-anything, pure road machine. The Cannondale Synapse Carbon 4 Tiagra Disc Road Bike thrives on the open road, up and down hills, and on rough pavement.
Highlights
- Lightweight Synapse Carbon frameset / SmartSense ready
- Shimano Tiagra 10-speed group w/ hydraulic disc brakes
- Integrated Cannondale App connectivity
Specs
- Platform - Synapse Carbon
- Model Name - Synapse Carbon 4
- Model Code - C12402U
FRAMESET
- Frame - Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12x142mm thru-axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
- Fork - Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12x100mm thru-axle, thru-tube internal routing, hidden fender mounts
- Headset - Synapse Sealed Bearing, integrated, 1-1/4"-1-1/8"
DRIVETRAIN

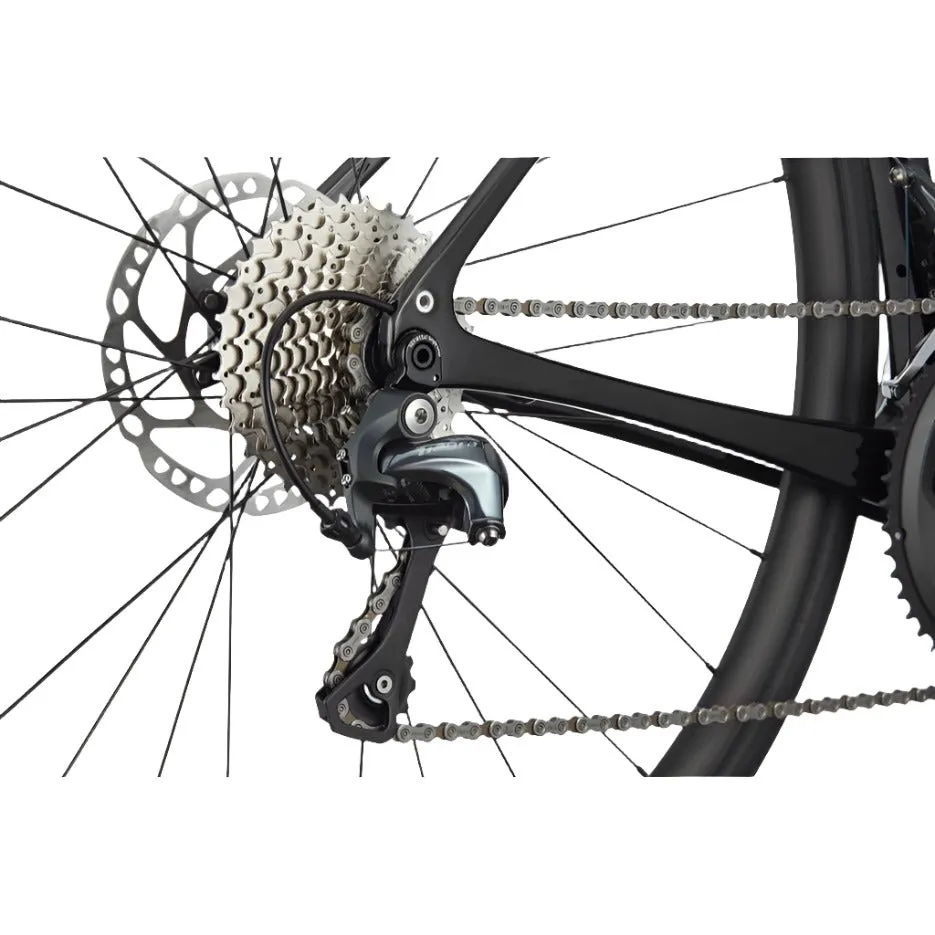

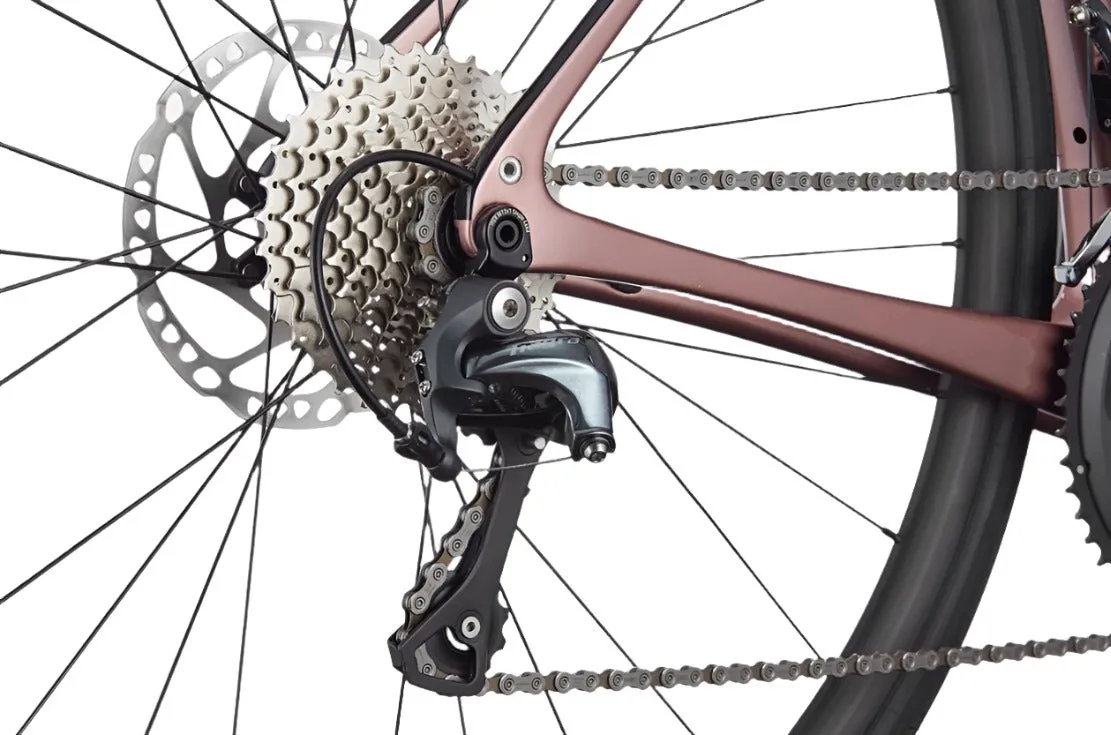

- Rear Derailleur - Shimano Tiagra GS
- Front Derailleur - Shimano Tiagra, braze-on
- Shifters - Shimano Tiagra hydraulic disc, 10-speed
- Chain - Shimano HG54, 10-speed

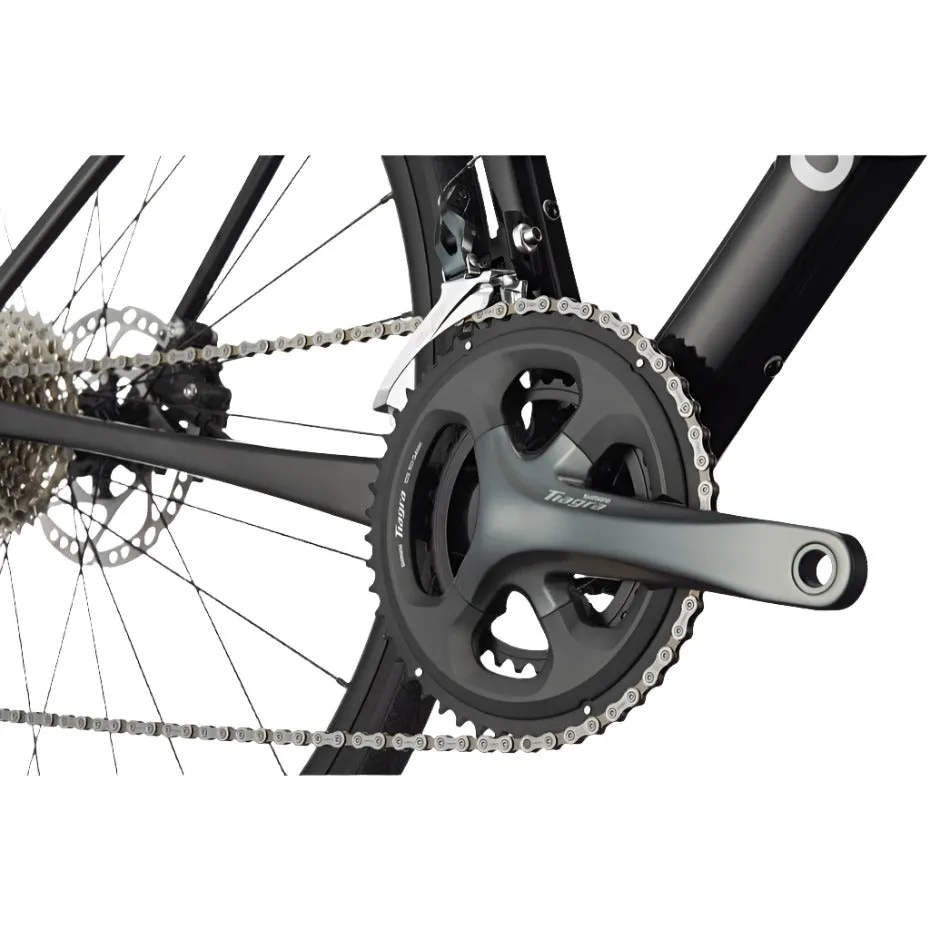

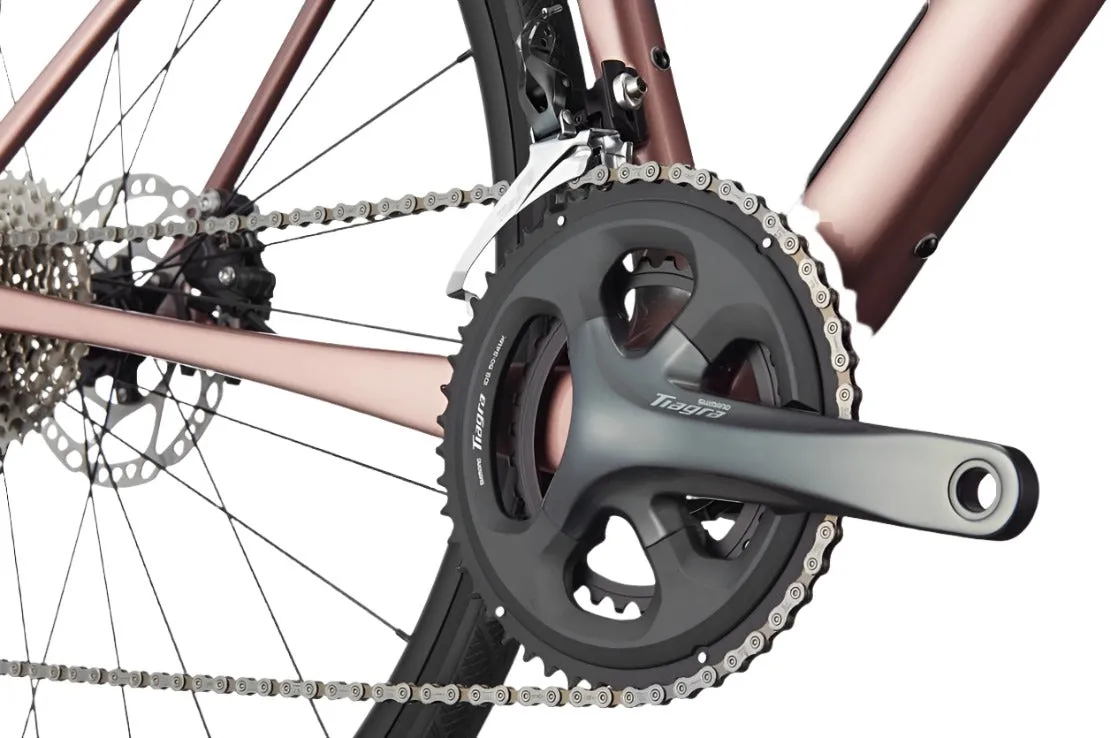

- Crank - Shimano Tiagra, BSA, 50/34
- Rear Cogs - Shimano Tiagra, 11-34, 10-speed
- Bottom Bracket - Shimano BSA
BRAKES
- Brakes - Shimano Tiagra hydraulic disc, 160/160mm RT64 rotors
- Brake Levers - Shimano Tiagra hydraulic
WHEELS
- Rims - RD 3.1, 28h, 21mm IW
- Spokes - Stainless Steel, 14g
- Tires - Vittoria Zaffiro Pro Reflective, 700 x 30c
- Tire Size - 30
- Wheel Size - 700c
- Hubs - (F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
- Front Tire - Vittoria Zaffiro Pro Reflective, 700 x 30c
- Rear Tire - Vittoria Zaffiro Pro Reflective, 700 x 30c
COMPONENTS

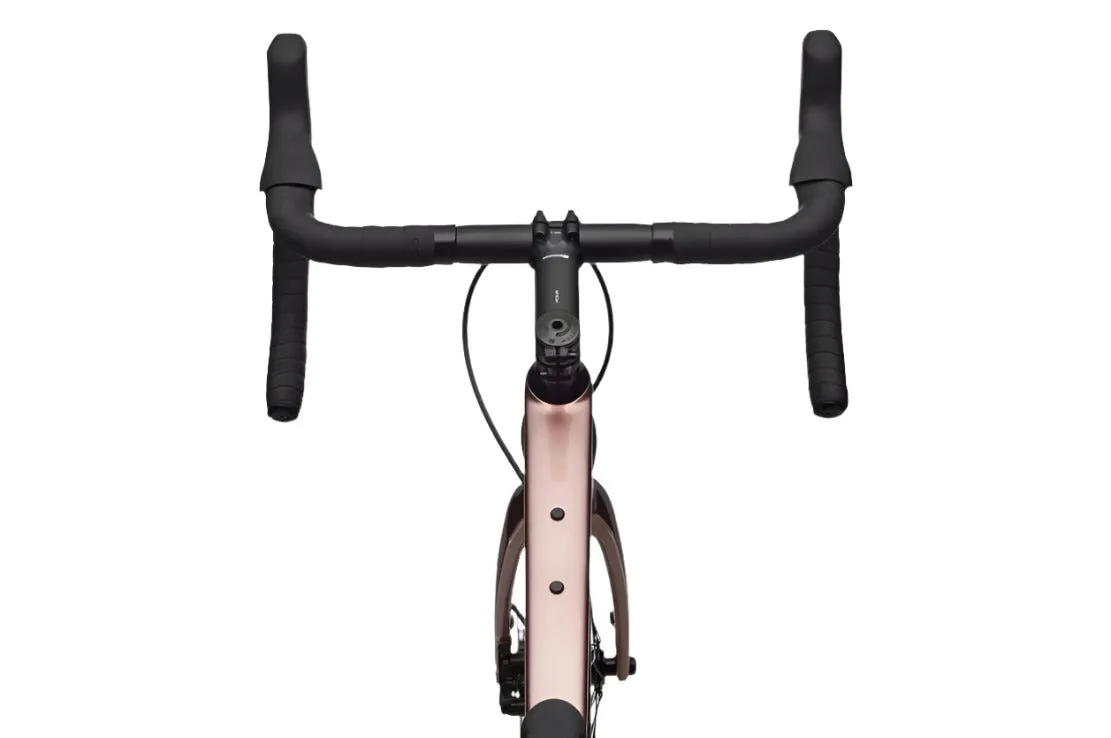

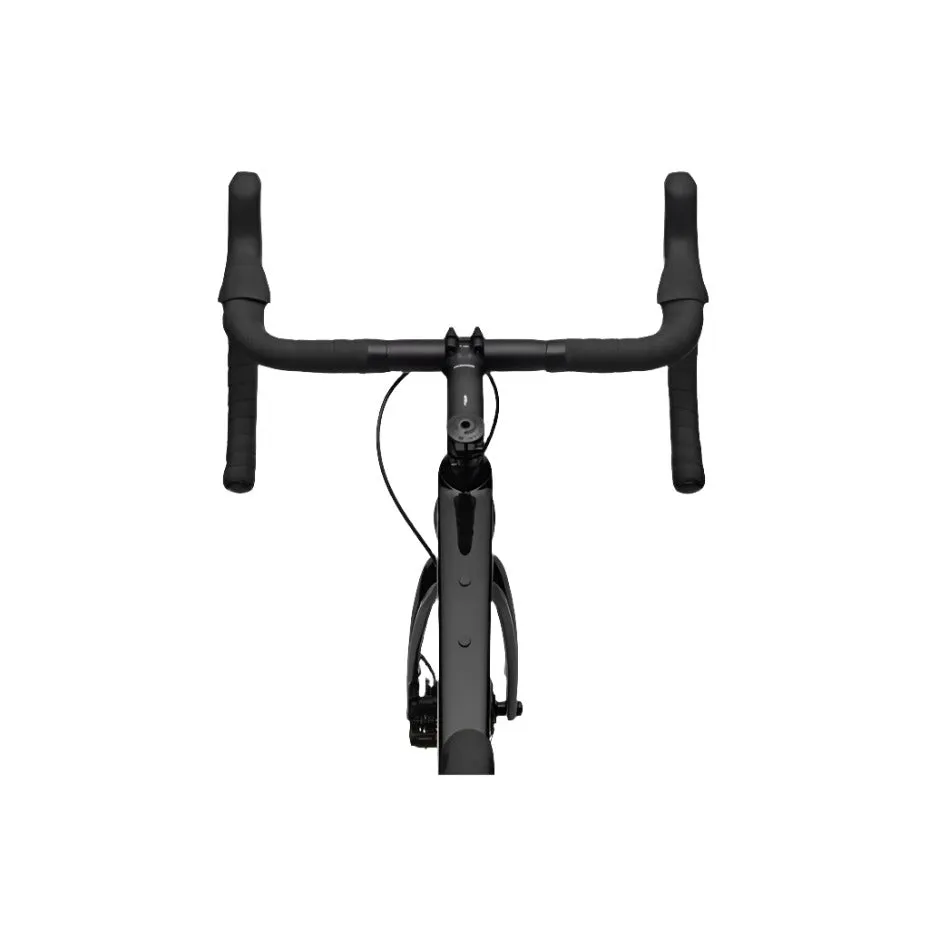

- Handlebar - Cannondale 3, 6061 Alloy, Compact
- Stem - Cannondale 3, 6061 Alloy, 31.8, 7°
- Grips - Fabric Knurl Bar Tape
- Saddle - Fizik Aliante Delta, S-alloy rails
- Seatpost - Cannondale 3, 6061 Alloy, 27.2 x 350mm (48-56), 400mm (58-61)
CONNECTIVITY
- Wheel Sensor - Cannondale Wheel Sensor
*Specifications subject to change without notice
Mack Cycle recommends having your bike assembled by your local, authorized Cannondale retailer, who will charge an assembly fee.
