Product Details
＋

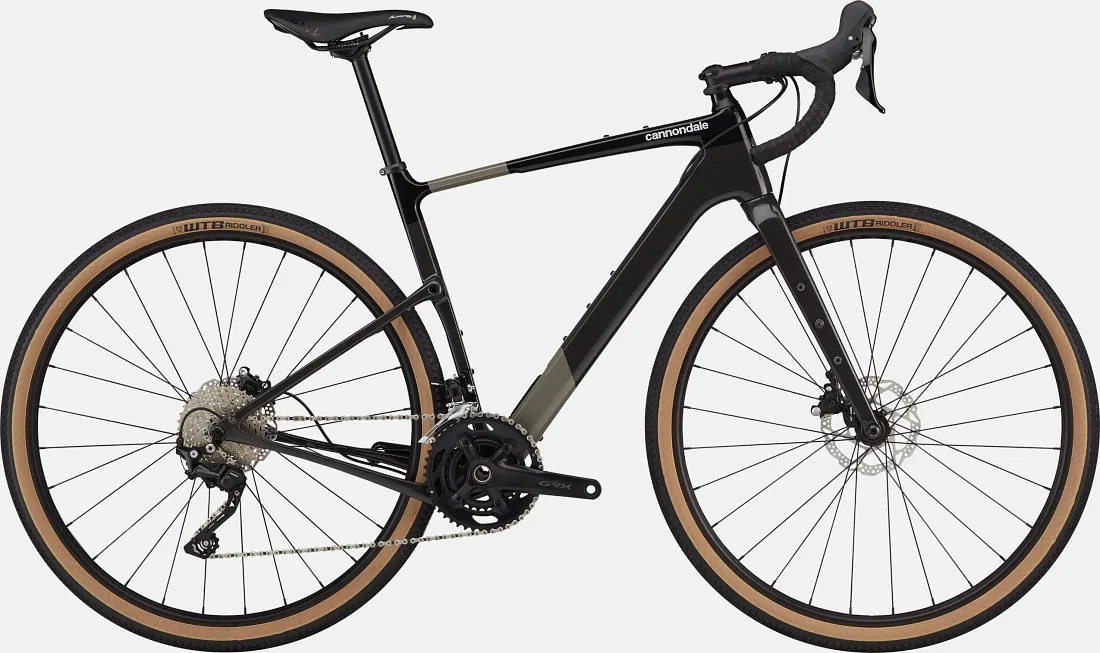

Cannondale Topstone Carbon 4 Smoke Black -2024
Nothing is impassable
The best gravel bike for anything from dirt roads to singletrack trails. With the grip and comfort of the Kingpin suspension, nothing is off-limits.
Where it thrives
Gravel and Dirt Roads, Rough Pavement, Trails
What it's built for
Gravel riding, back road exploring, bike packing and off-road adventures
Highlights
- Lightweight Topstone Carbon frameset with Kingpin suspension, SmartSense compatible / Integrated Cannondale App connectivity
- Shimano GRX 600/400 10-speed gravel group
- WTB ST i23 TCS rims / 700x45c WTB Riddler Comp tires
Kingpin Suspension
Delivering a smooth ride without the added weight and complexity of a shock and links, Kingpin is our answer for the most demanding gravel riders. Whether you need more comfort to go long, more traction to push beyond or more give to take on the tech - Kingpin is the maintenance-free, lightweight answer to your prayers.
Specs
DETAILS
- Platform
- Model NameTopstone Carbon 4
- Model CodeC15402U
FRAMESET
- FrameTopstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
- ForkTopstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
- HeadsetIntegrated, 1-1/8" - 1-1/2"
DRIVETRAIN
- Rear DerailleurShimano GRX 400, Shadow RD
- Front DerailleurShimano GRX 400, braze-on
- ShiftersShimano GRX 400, 10-speed
- ChainKMC X10, 10-speed
- CrankShimano GRX 600, 46/30
- Rear CogsShimano HG500, 11-34, 10-speed
- Bottom BracketShimano BSA 68
BRAKES
- BrakesShimano GRX 400 hydraulic disc, 160/160mm RT54 rotors
- Brake LeversShimano GRX 400 hydraulic disc
WHEELS
- RimsWTB ST i23 TCS, 700c, 28h, tubeless ready
- SpokesStainless Steel, 14g
- TiresWTB Riddler Comp, 700 x 45c
- Tire Size45
- Wheel Size700c
- Hubs(F) Formula cartridge bearing, 12x100mm, centerlock / (R) Formula cartridge bearing, 12x142mm, centerlock
- Front TireWTB Riddler Comp, 700 x 45c
- Rear TireWTB Riddler Comp, 700 x 45c
COMPONENTS
- HandlebarCannondale 3, butted 6061 Alloy, 16 deg flare drop
- StemCannondale 3, 6061 Alloy, 31.8, 7°
- GripsFizik Solocush Soft, 3mm
- SaddleFizik Aliante Delta, S-alloy rails
- SeatpostCannondale 3, 6061 Alloy, 27.2 x 350mm
CONNECTIVITY
- Wheel SensorCannondale Wheel Sensor
EXTRA
- Extra 1StrapRack toolholder
PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
