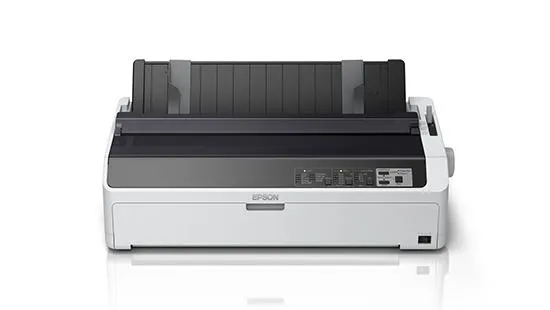

Product Details
＋
Printing Technology:
Print Method:Impact dot matrix
Control Panel:6 switches and 10 LEDs
Print Direction:Bi-direction with logic seeking
Number of Pins in Head:24 pins
Control Code:ESC/P2, IBM PPDS
Print Speed:
Ultra High Speed Draft:10cpi: 550cps
High Speed Draft:10 / 12 cpi: 487 / 584 cps
Draft:10 / 12 cpi: 366 / 439 cps
Letter Quality:10cpi: 121cps
Reliability:
Printhead Life:400 million strokes / wire
Mean Print Volume Between Failure (MVBF):50 million lines (except printhead)
Mean Time Between Failure (MTBF):25,000 Power On Hours (POH) (25% Duty)
Print Characteristics:
Character Sets:1 Italic and 12 graphical character tables: Italic table, PC437 (US, Standard Europe), PC850 (Multilingual), PC860 (Portuguese)*1
PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15
Bitmap Fonts:10, 12, 15 cpi
Scalable Fonts:Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.)
Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET
Paper Path:
Manual Insertion:Front or rear in-top out
Push Tractor:Front or rear in, top out
Pull Tractor:Front, rear or bottom in, top out
Paper Media:
Cut Sheet (Single Sheet):Entry: Front
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.065 - 0.14 mm | (0.0025 - 0.0055”)
Entry: Rear
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.065 - 0.14 mm | (0.0025 - 0.0055”)
Cut Sheet (Multi-part Forms):Entry: Front
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.12 - 0.46 mm | (0.0047 - 0.018”)
Copies: 1 Original 5 copies
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.12 - 0.46 mm | (0.0047 - 0.018”)
Copies: 1 Original 5 copies
Continuous Paper (Single Sheet / Multi-part):Entry: Front, Rear, Bottom
Length: 101.6 - 558.8 mm | (4.0 - 22.0”)
Width: 101.6 - 406.4 mm | (4.0 - 16.0”)
Thickness: 0.065 - 0.49 mm | (0.0025 - 0.019”)
Copies: 1 Original 6 copies
Length: 101.6 - 558.8 mm | (4.0 - 22.0”)
Width: 101.6 - 406.4 mm | (4.0 - 16.0”)
Thickness: 0.065 - 0.49 mm | (0.0025 - 0.019”)
Copies: 1 Original 6 copies
Envelope (No.6):Entry: Rear
Length: 92mm | (3.6”)
Width: 165mm | (6.5”)
Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”)
Length: 92mm | (3.6”)
Width: 165mm | (6.5”)
Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”)
Envelope (No.10):Entry: Rear
Length: 105mm | (4.1”)
Width: 241mm | (9.5”)
Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”)
Length: 105mm | (4.1”)
Width: 241mm | (9.5”)
Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”)
Label (Base Sheet):Entry: Bottom
Length: 101.6 - 558.8 mm | (4.0 - 22.0”)
Width: 101.6 - 406.4 mm | (4.0 - 16.0”)
Thickness: 0.16 - 0.19 mm | (0.0063 - 0.0075”)
Length: 101.6 - 558.8 mm | (4.0 - 22.0”)
Width: 101.6 - 406.4 mm | (4.0 - 16.0”)
Thickness: 0.16 - 0.19 mm | (0.0063 - 0.0075”)
Card:Entry: Front, Rear
Length: 100 - 148 mm | (3.9 - 5.8”)
Width: 100 - 148 mm | (3.9 - 5.8”)
Thickness: 0.22mm | (0.0087”)
Length: 100 - 148 mm | (3.9 - 5.8”)
Width: 100 - 148 mm | (3.9 - 5.8”)
Thickness: 0.22mm | (0.0087”)
Roll Paper:Entry: Rear
Width: 216mm | (8.5”)
Thickness: 0.07 - 0.09 mm | (0.0028 - 0.035”)
Width: 216mm | (8.5”)
Thickness: 0.07 - 0.09 mm | (0.0028 - 0.035”)
Line Spacing:4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)
Environmental Conditions (Operating):
Temperature:5 - 35 °C *3
Humidty:10 - 80% RH *3
Acoustic Noise:
Acoustic Noise:55dB
Input Data Buffer:
Input Data Buffer:128KB
Interface:
Interface:USB 2.0, Bi-directional parallel
(IEEE-1284 nibble mode supported)
Printable Columns:
Pitch:10cpi: 136 columns
Ribbon Cartridge:
Standard:Fabric Ribbon Cartridge (Black)
Ribbon Life:Approx. 8 million Characters*2
Supported Operating System:
Printer Driver:Microsoft Windows XP / Vista / 7 / 8 / 10
Utility:Epson Status Monitor 3: Microsoft Windows XP / Vista / 7 / 8 / 10
Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10
Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10
