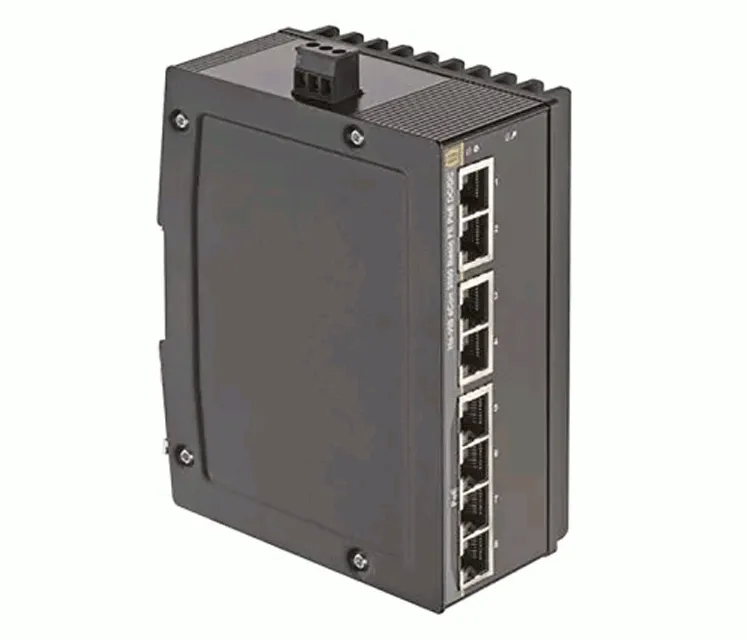

This is a new Harting 8-port RJ45 Ha-VIS eCon 3080B-A-PP Unmanaged Ethernet Switch with part number 24031080030. The Ha-VIS eCon 3000 Fast Ethernet Basic family of unmanaged Ethernet Switches offer a plug and play solution for DIN Rail-mounted connectivity. One main benefit of the eCon 3000 series is the slender construction and frontal port mounting of the switches, allowing for installation into space-restricted or hard-to-reach applications.

Features:

• Cabling requires less time, costs, and space Gain greater flexibility for connecting end devices, and expanding your network
• Energy-efficient design without fans
• Cost-efficient and quick expansion and/or reconstruction of network infrastructures
• Slim design of the switches
• RJ45 and FOC ports are on the front of the switches, allowing cables to be connected quickly and simply

Specifications:

• RJ45 Ports: 8
• Transmission Speed: 10/100Mbit/s
• Transmission Length: 100m
• Mounting: DIN Rail
• Nominal Supply Voltage: 24V dc
• Dimensions: 60 x 107.5 x 142mm
• Maximum Operating Temperature: 55°C
• Maximum Supply Voltage: 60V dc
• Minimum Operating Temperature: 0°C
• Minimum Supply Voltage: 18V dc
• Number of Ports: 8
• Switch Type: Unmanaged
• Protocol Type: Ethernet 10/100 Mbit/s
• Series: Ha-VIS eCon 3000
• For Use With: DIN Rail Assembly in Control Cabinets
