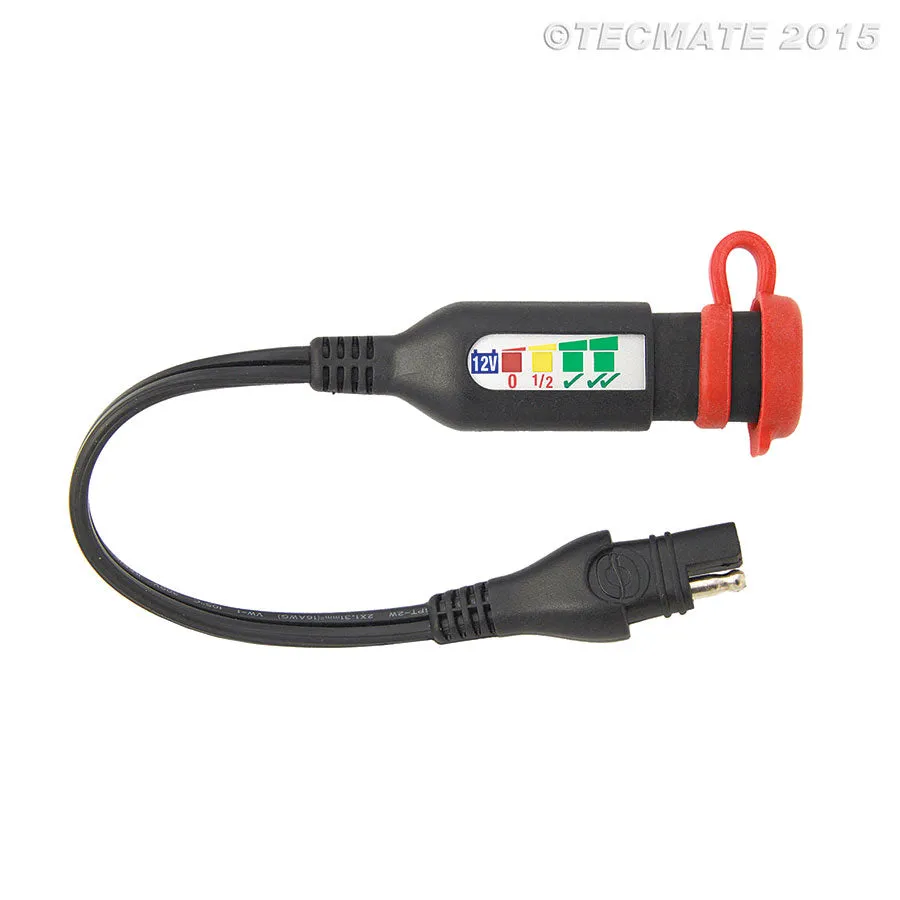

Battery status / charge system monitor for 12V lead-acid, with in-line SAE connect-ability.
Monitor charge of any 12V lead-acid battery or confirm if vehicle charging system is working correctly. Connects to any SAE battery lead or adapter.

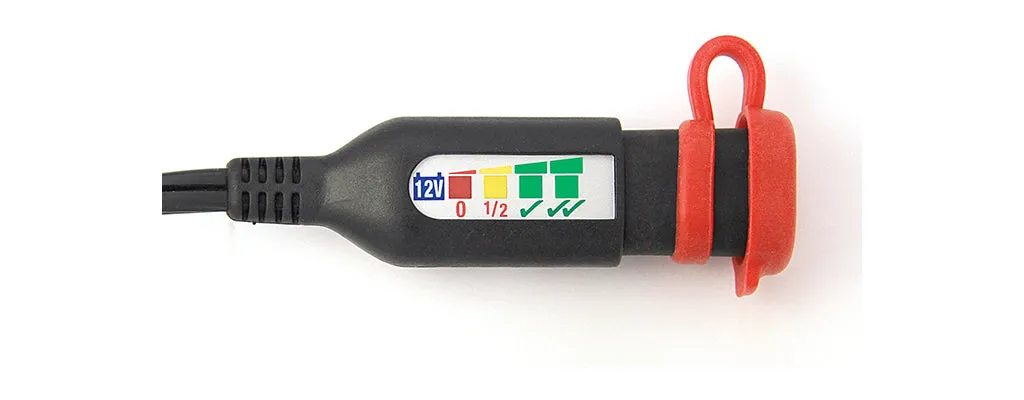

• 2 automatic Modes – Battery charge level monitor (single LED blink mode) & Charging system test (arrow mode).
• 4 LEDs cover ‘full to empty’ voltage range of all 12V batteries, including higher voltage AGM for power sport (4th √√ LED ≥ 12.7V ).
• Battery charge level : LED matching charge level blinks every 5 seconds (long term draw less than 0.2mA).
• Fast blink mode for first 15 seconds after connection to battery, ideal for quick check of multiple batteries (e.g. vehicles on showroom floor).
• Vehicle Charge system : LED arrow mode activates when charge voltage reaches minimum 13.5V (√ green LED) or ideal range of 14V (√√ green LED).
• SAE charge port with weatherproof sealing cap.
• Length=6″ / 15cm, SAE connector.

Premium battery monitor designed by TecMate. 3-year limited warranty.
